Part Number: TCK312, TCKWP312, TB312 Make: Honda Model: Civic Year: 2001-2005 Engine: 1.7L

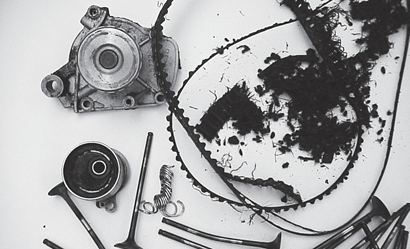

Below is the result from improper belt setup. Notice the damaged spring, this is the result of turning the crankshaft clockwise during initial setup, which is incorrect.

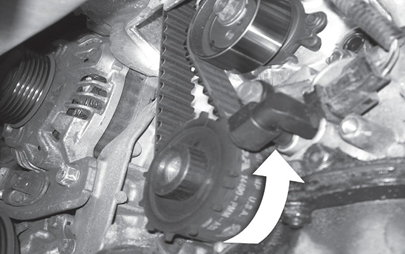

See installation instructions provided in this kit. Crankshaft must be rotated two turns COUNTERCLOCKWISE with locking pin in tensioner and attachment bolt loose.
PROPER INSTALLATION IS CRITICAL. IMPROPER INSTALLATION WILL VOID WARRANTY AND WILL MOST LIKELY RESULT IN MAJOR ENGINE DAMAGE!
CRANKSHAFTS ON THESE ENGINES ROTATE COUNTERCLOCKWISE!!!
Not following proper installation procedures will cause:
- Incorrect tensioner position
- Improper belt tension
Resulting in:
- A violent correction of the tensioner position
- Damage to tensioner and/or spring and/or belt
- Improper belt tracking causing interference with other components
- Catastrophic engine damage due to timing belt and other component failure
2001 – 2003 model years may require a longer fastening bolt!
Please be advised that early model year Civics may require an updated tensioner bolt. Honda upgraded the timing belt tensioner assembly in late 2002. ACDelco T43175 follows the design change. During this change the OE bolt length was also changed to allow for proper thread engagement. ACDelco supplies the updated bolt as part of TCK312/TCKWP312 kits.
Verify this issue with one of the following procedures, the updated OE tensioner and bolt has been provided in this kit.
- With tensioner fastening bolt placed through tensioner assembly – Verify there is 15mm of thread engagement.
- Measure Bolt: Bolt length for new tensioner design provided in this kit should be 54mm in length. (Incorrect Bolt Length Is 50.6mm)
Contributor: ACDelco Technical Assistance Centre
